BT100SR18186C Diesel Concrete Pump 186kw 500L Oil Tank Volume Easy Operation

Product introduction HBT100SR18186C

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m³/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685

Electric control system

(1) Control boxcenclosed.Touch screen:allkinds of operating parameters can be stored and displayed.
(2) Double controller auto-pumping technology.

Hydraulic system

(1) Circuit:twin-pump,twin-circuit open system.
(2) Controllable air coolingfull flow forced air-cooling radiator,ensure the hydraulic system works under the best temperature condition(60℃).
(3) Oil pumps&main valves:from REXROTH:manual reliefvalve is made in Italian GALTECH.Automatic lubrication adopts multi-point centralized phase sequence follow-up design, which is precise, concise, fuel-efficient and reliable.

Transfer and transportation of concrete pump

The traction bridge equipped with the trailer concrete pump is only suitable for short distance traction movement, and the concrete pump must be loaded in the cargo compartment of the transport truck for long distance transfer.

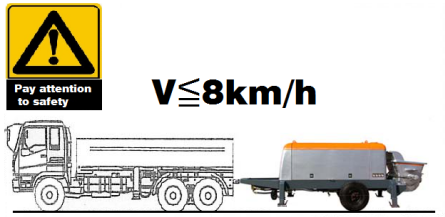

When towed by a motor vehicle, the towing speed shall not exceed 8km/h.

19-fig.(1)short distance traction movement
