Professional Concrete Pump Easy Operation HBT100SR18186C

Product introduction HBT100SR18186C

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m³/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685

Materials and specifications are subject to change without notice.

Deutz(made in CHINA)diesel engine possesses blowing cooling to greatly reduce the temperature of the hydraulic system.

Electric control system

(1) Control boxcenclosed.Touch screen:allkinds of operating parameters can be stored and displayed.
(2) Double controller auto-pumping technology.

Hydraulic system

(1) Circuit:twin-pump,twin-circuit open system.
(2) Controllable air coolingfull flow forced air-cooling radiator,ensure the hydraulic system works under the best temperature condition(60℃).
(3) Oil pumps&main valves:from REXROTH:manual reliefvalve is made in Italian GALTECH.Automatic lubrication adopts multi-point centralized phase sequence follow-up design, which is precise, concise, fuel-efficient and reliable.

Concrete pump requirements for concrete

It should be clear that not all concrete is "pumpable".

Concrete pump can pump concrete basic premise is that the concrete has good workability, can pump. Usually measured by the slump of concrete:slump of 180mm or so is best for pumping.

Pumping slump of ordinary strength concrete (such as C30,fcu= 30MPa) must be greater than 10mm, while pumping slump of high strength concrete (such as C60,fcu=60MPa) must be ≥ 180mm.

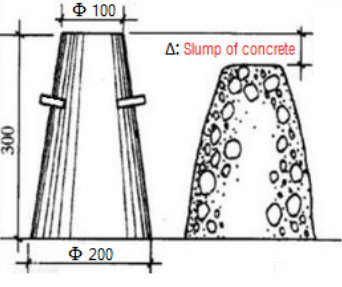

4-fig.(1) slump of concrete

Changsha Zoomwolf machinery CO.,LTD is a high-tech enterprise,which is situated in Changsha,Hunan province,China,known as the capital of engineering machinery. We are engaged in research, development,manufacturing,sale and service of construction machinery and spare parts. We mainly manufacture concrete placing booms,trailer-mounted concrete pumps and concrete pumping-units. Our products technical performances keeps Zoomwolf preferred in the industry.

Zoomwolf president and General Manager Mr. Fulicai possesses over 20 years experience in construction industry. He has in-depth experience of managing,manufacturing,quality control,technology,marketing and after service etc. He is a great visionary with lot of enthusiasm for taking Zoomwolf to greater heights.

Zoomwolf is strengthened with experienced professionals in the construction industry. Zoomwolf products are manufactured using the best international components and techniques. Full process material pre-treatment and complete set of fine machining equipment ensures the quality of Zoomwolf products.

Zoomwolf products have sold to various regions of China very well and have been exported to Middle-East,Southeast Asia,South America and Africa etc. We have a team of international service engineers to provide excellent after-sale service and technical support each oversea client.

Zoomwolf will strive to provide quality products and professional service for Customers. Think Globally,Act Locally. Teamwork achieves greats. We spare no efforts to be the leader in the market.
