| Brand Name : | Zoomwolf |
| Model Number : | HBT80S16110C |
| Certification : | ISO |
| Price : | Negotiable |

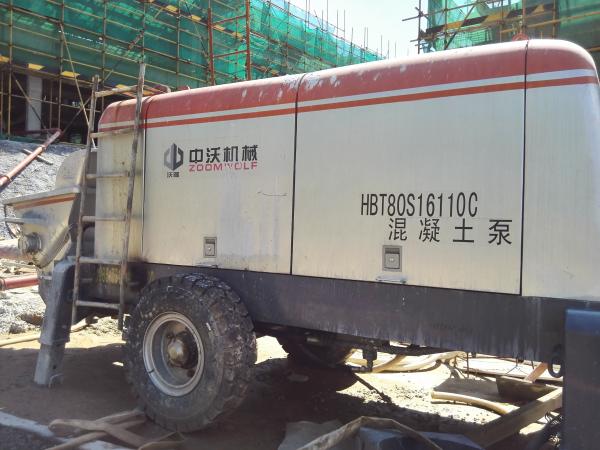

Reliable Trailer Concrete Pump 260 ml/r Main Oil Pump Displacement
| Name of parameter | Unit | HBT80S16110C |
| Output capacity | m3/h | 55(high pres.)/80(low pres.) |
| Output pressure | MPa | 16(high pres.)/9(low pres.) |
| Distribution Valve | SValve | |
| motor model | Y2-315S-4 | |
| Rated power of motor | kW | 110 |
| Rated rotating speed /voltage | rpm/V | 1480/380 |
| Displacement of the main oil pump | ml/r | 260 |
| Oil pres.of the pumping system | MPa | 32 |
| Delivery cylinder diam.×stroke | mm | Φ200×1800 |
| Hydraulic system circle form | Twin-pump and -circuit open sys. | |
| Hopper volume | L | 730 |
| Feeding height | mm | 1400 |
| Oil tank volume | L | 500 |
| Max.grain size | mm | pebbleФ50,crush.stoneФ40 |
| Overall dimension L×W×H | mm | 6275×1962×2215 |
| Total mass | kg | 6450 |
Maintenance of concrete pump power
The maintenance including daily maintenance inspection and regular maintenance.
The key point of daily maintenance inspection is to find out the abnormal condition of the equipment as early as possible, and deal with it in time to prevent the expansion of the accident.
The motor shall be maintained in accordance with the motor maintenance specifications.
The diesel engine shall be maintained in accordance with the maintenance specifications of the diesel engine.

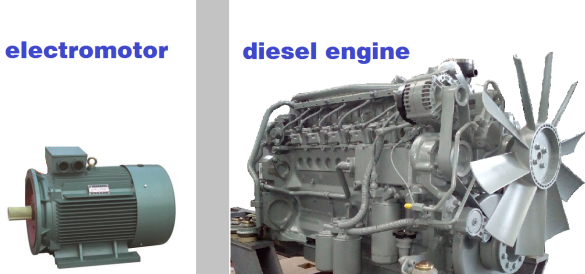

23-fig.(1) electric motor and diesel engine
ZOOMWOLF concrete pump is divided into two series: motor drive and diesel drive. The first choice is 110kW for electric motor and 186kW for diesel engine.
38-fig.(1) power of concrete pump
|
|
