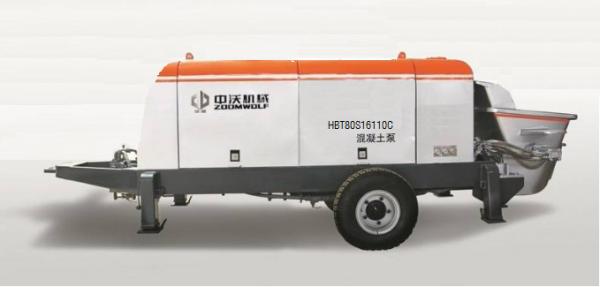

High Efficiency Cement Mortar Pump 110kw 6450kg Weight HBT80S16110C
| Name of parameter | Unit | HBT80S16110C |
| Output capacity | m3/h | 55(high pres.)/80(low pres.) |
| Output pressure | MPa | 16(high pres.)/9(low pres.) |
| Distribution Valve | SValve | |
| motor model | Y2-315S-4 | |
| Rated power of motor | kW | 110 |
| Rated rotating speed /voltage | rpm/V | 1480/380 |
| Displacement of the main oil pump | ml/r | 260 |
| Oil pres.of the pumping system | MPa | 32 |
| Delivery cylinder diam.×stroke | mm | Φ200×1800 |
| Hydraulic system circle form | Twin-pump and -circuit open sys. | |
| Hopper volume | L | 730 |
| Feeding height | mm | 1400 |
| Oil tank volume | L | 500 |
| Max.grain size | mm | pebbleФ50,crush.stoneФ40 |
| Overall dimension L×W×H | mm | 6275×1962×2215 |
| Total mass | kg | 6450 |
Concrete pump and its working principle
Concrete pump is the abbreviation of the trailer concrete pump.
Concrete pump is a kind of mechanical equipment which USES reciprocating linear motion of concrete conveying cylinder to output ready-mixed concrete at higher than atmospheric pressure.
Now the common s-tube valve pumping mechanism to illustrate its pumping principle:
1-fig.(1)working principle of concrete pump
Working state 1: A cylinder suction, B cylinder discharge concrete;
Working condition 2: B cylinder suction, A cylinder discharge concrete.
When the process of state 1 ends, the S-tube will swing to the exit of cylinder A and enter state 2. At the end of the process of state 2, S-tube swings to the entrance of B cylinder and enters state 1...... And so on.
Transfer and transportation of concrete pump
The traction bridge equipped with the trailer concrete pump is only suitable for short distance traction movement, and the concrete pump must be loaded in the cargo compartment of the transport truck for long distance transfer.
When towed by a motor vehicle, the towing speed shall not exceed 8km/h.
19-fig.(1)short distance traction movement
|
|
